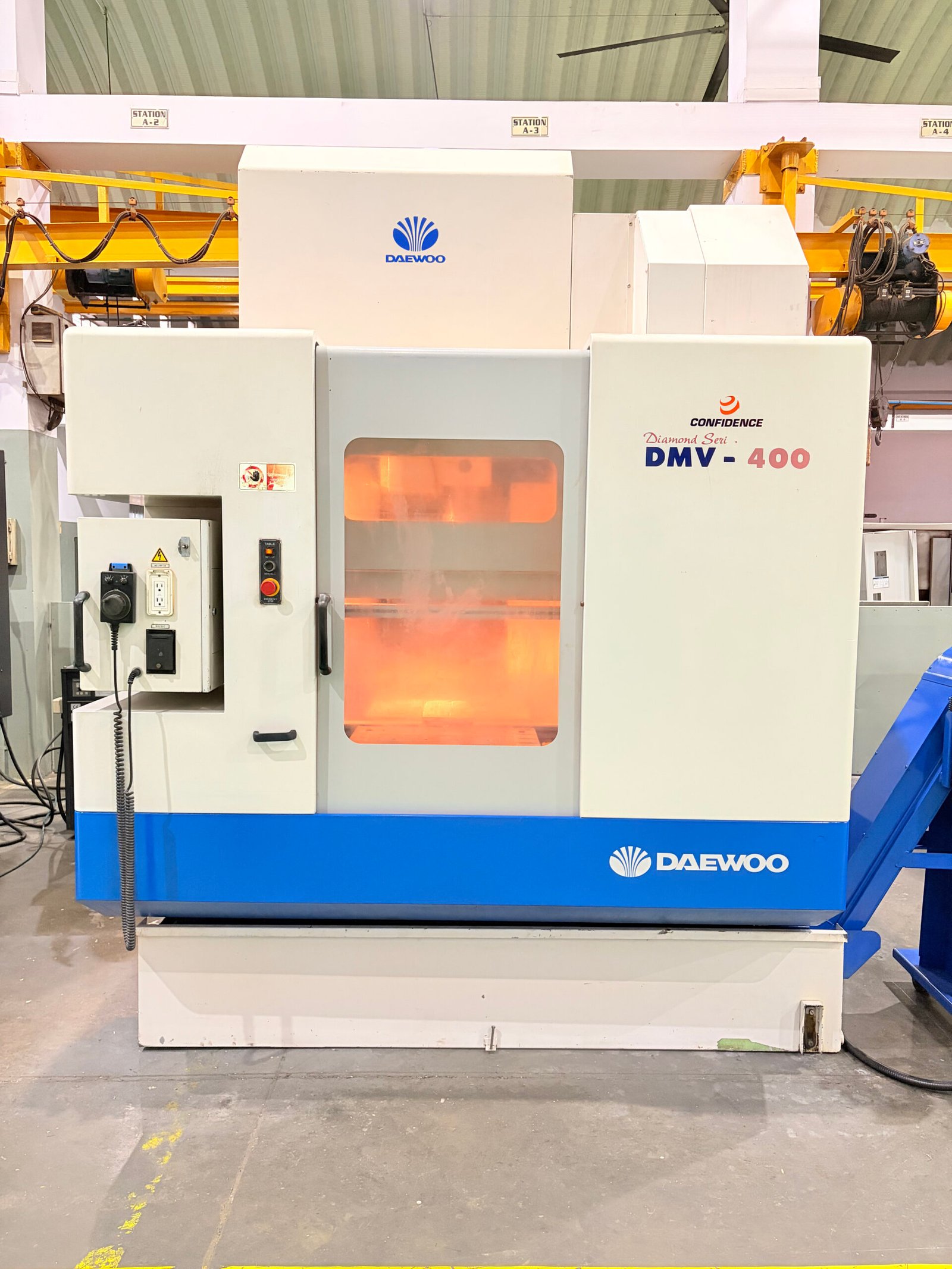

| Title | Description | Unit | DMV-400 |
| Travel | X- axis | mm | 560 |
| Y- axis | mm | 400 | |
| Z- axis | mm | 570 | |
| Spindle | Spindle nose | type | CAT40 |
| Spindle speed | rpm | 10,000 | |
| Spindle Power | Kw | 8 / 11 | |
| Table | Table Dimensions | mm | 2 – 650×450 |
| Max. Loading Weight | Kg | 2 – 300 | |

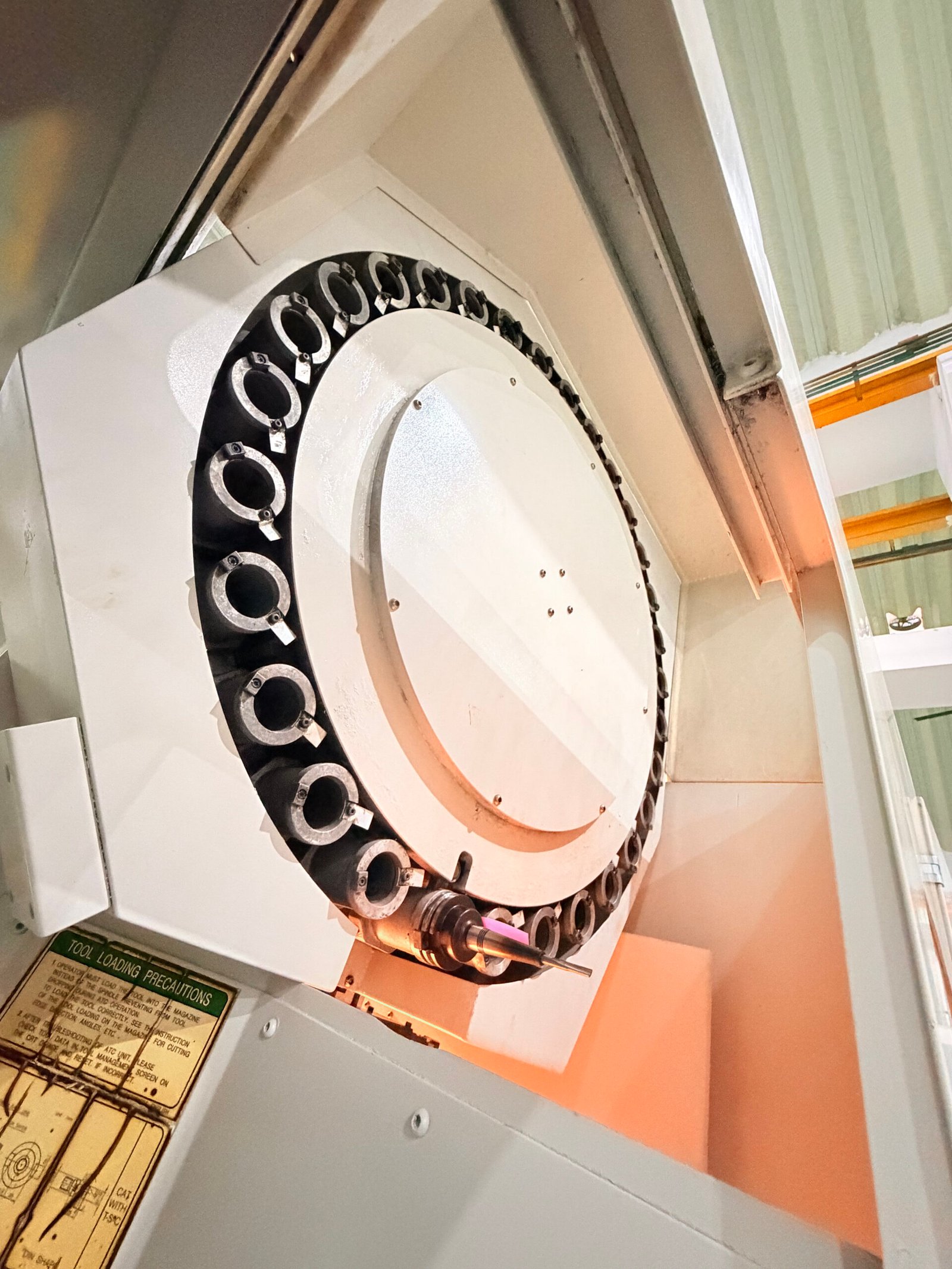

| ATC | No. of Tools | Nos | 30 |
| Feed rate | Rapid Traverse of X,Y,Z axis | m/min | 30x30x24 |
| CNC System | Controller | – | Fanuc 18-M/Mitsubishi |
| Machine size | Dimensions( L x W x H ) (Approx.) | mm | 2400 x 2950 x 2971 |
| Machine weight (Approx.) | kg | 6000 |
| Optional Accessories Available with Machine | |
| · 2x Tool Holder
· Spindle Chiller Unit · Conveyor with Coolant Tank |
· Leveling Pad |
