| Title | Description | Unit | DMC 1035v Ecoline |
| Travel | X- axis | mm | 1035 |
| Y- axis | mm | 560 | |
| Z- axis | mm | 510 | |

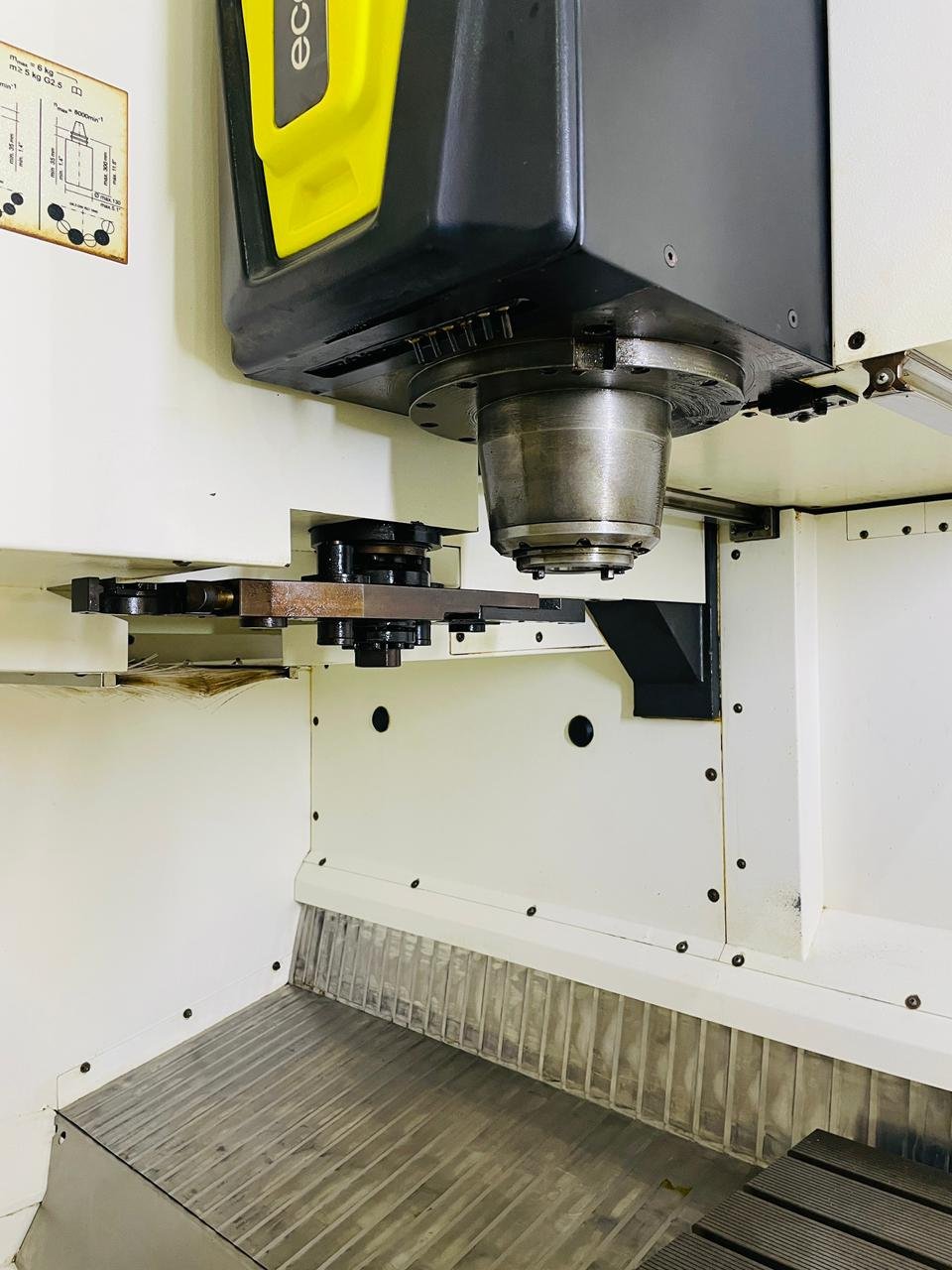

| Spindle | Spindle nose | type | SK40 |
| Spindle speed | rpm | 8,000 | |
| Spindle Power | Kw | 13 / 9 | |

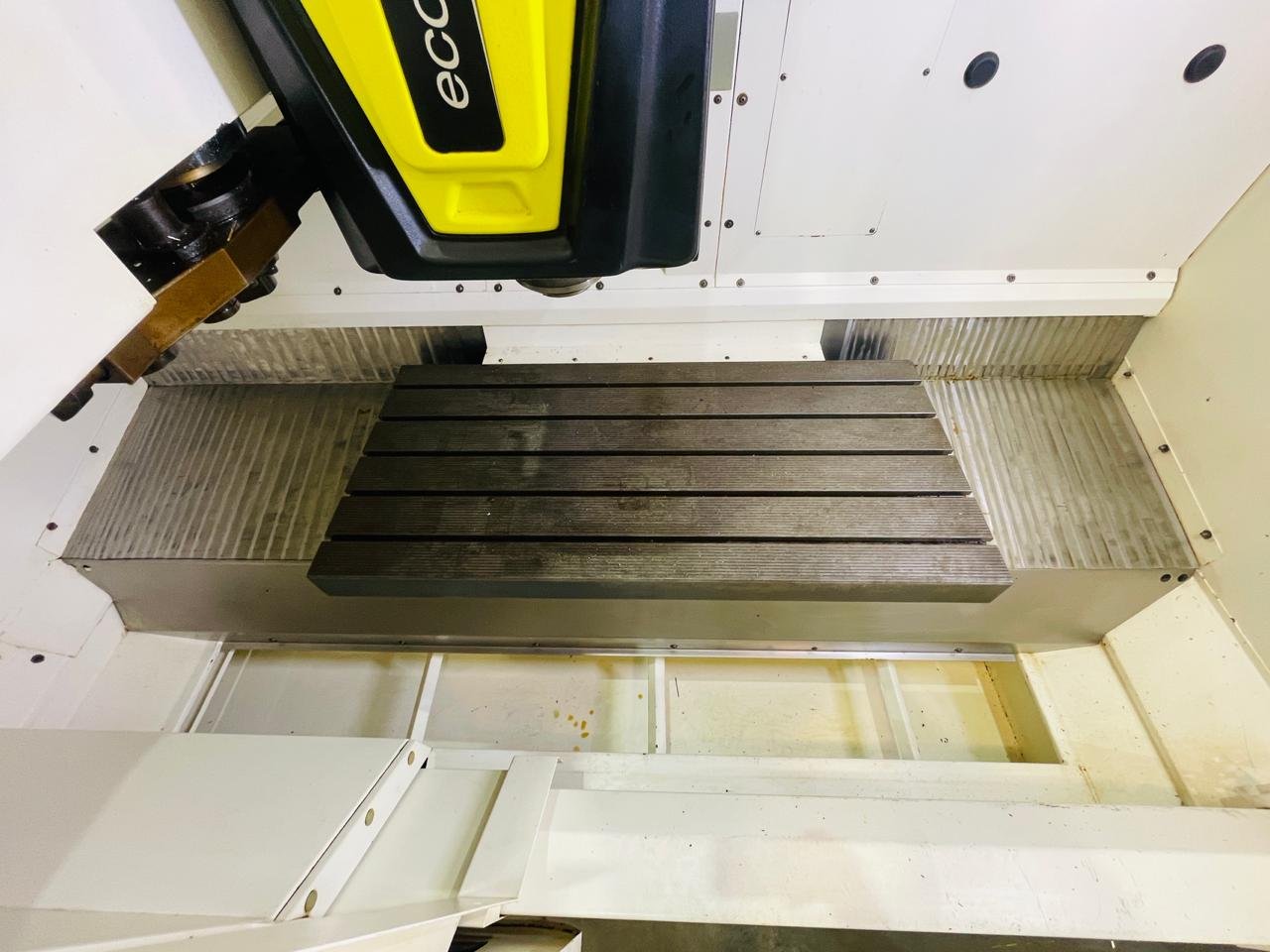

| Table | Table Dimensions | mm | 1200×560 |
| Max. Loading Weight | Kg | 1000 | |

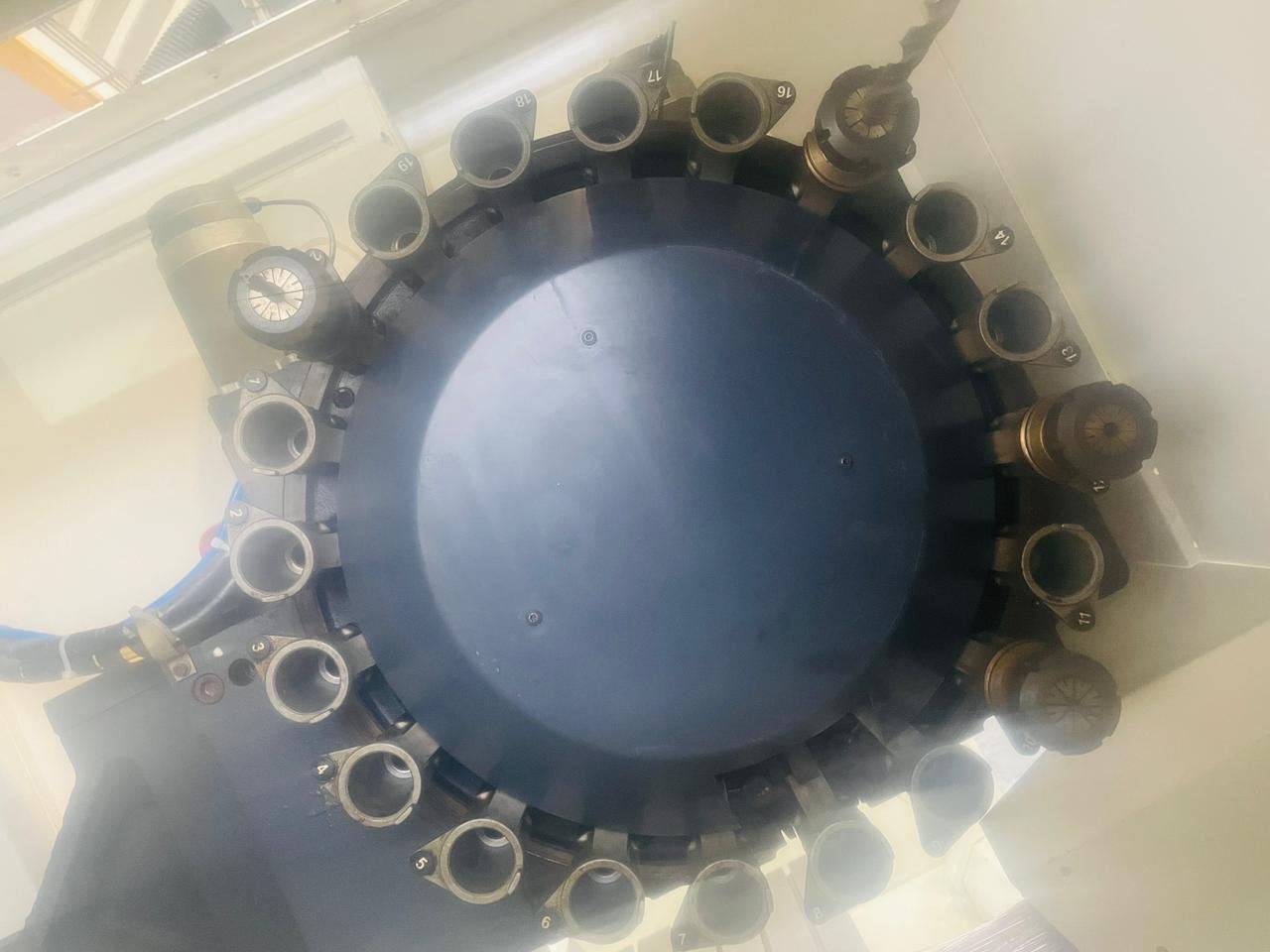

| ATC | No. of Tools | Nos | 20 |
| Feed rate | Rapid Traverse of X, Y, Z axis | m/min | 30x30x30 |

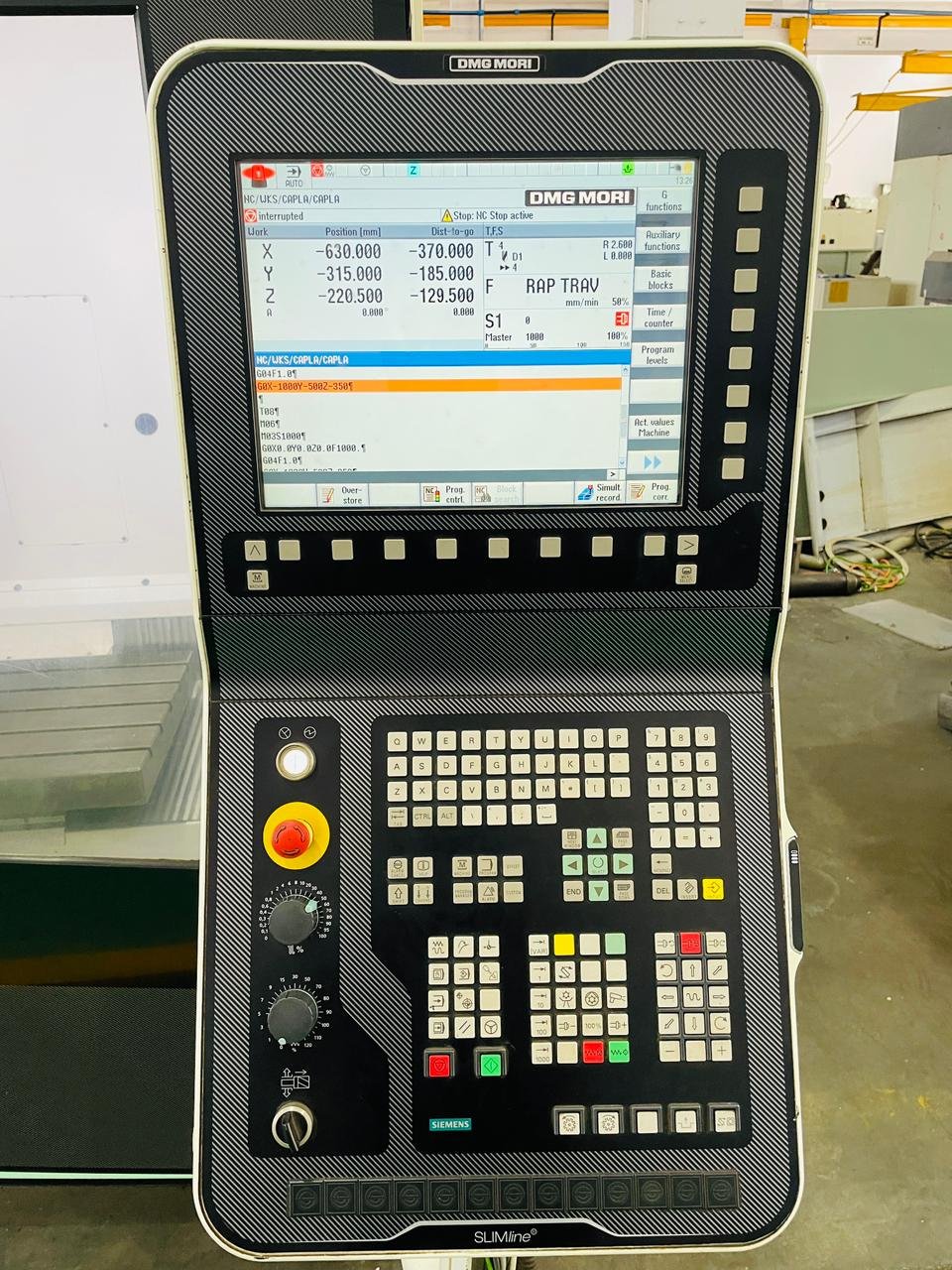

| CNC System | Controller | – | Siemens 840D |
| Machine size | Dimensions (L x W x H) (Approx.) | mm | 5000 x 4500 x 2800 |
| Machine weight (Approx.) | kg | 4500 |
| Optional Accessories Available with Machine | |
| · 20 tool ATC
· Siemens 840D
|
· Leveling Pad |
