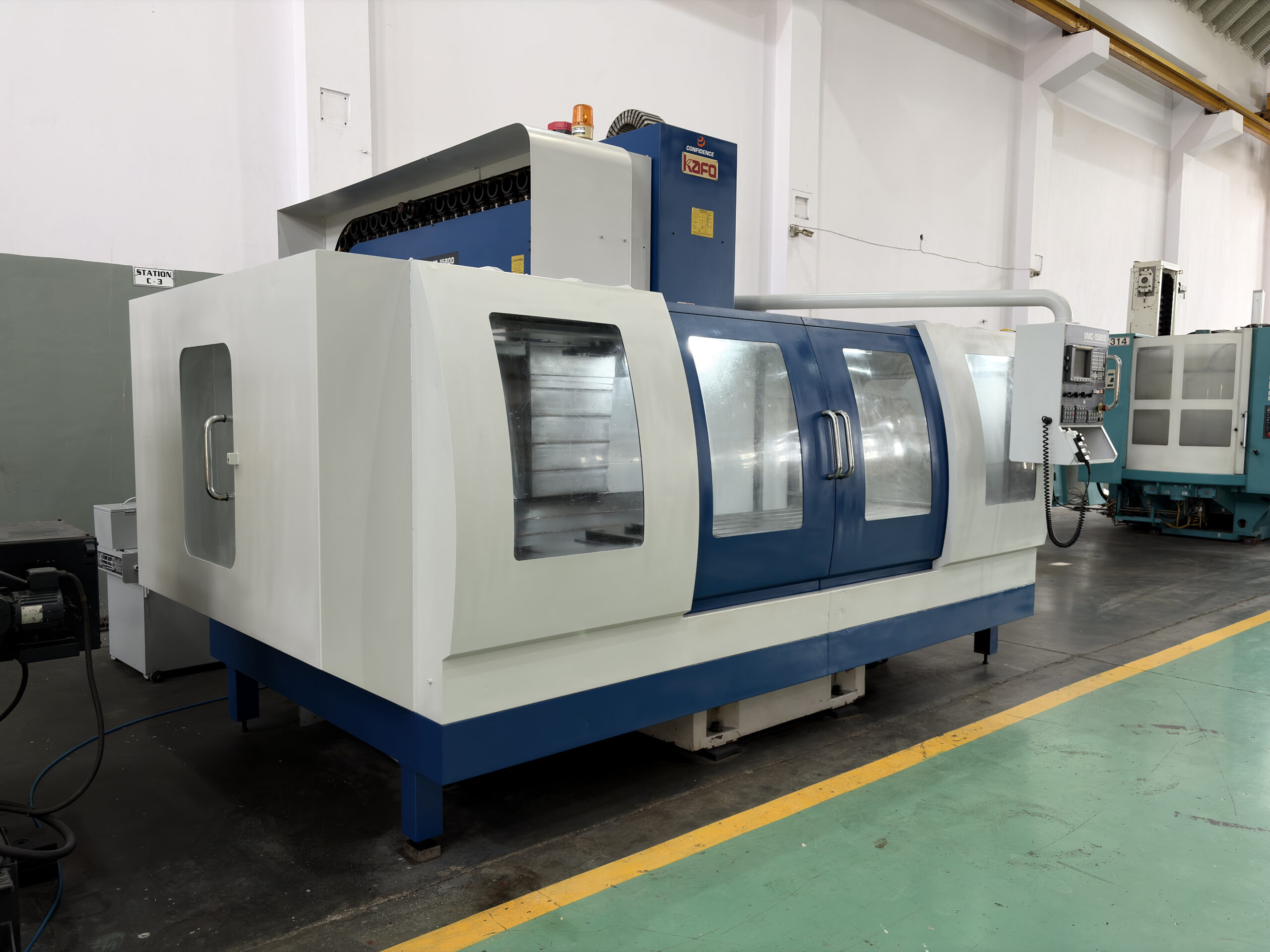

| Title | Description | Unit | VMC 15800 |
| Travel | X- axis | mm | 1500 |
| Y- axis | mm | 800 | |
| Z- axis | mm | 700 | |
| Spindle | Spindle nose | type | BT50 |
| Spindle speed | rpm | 6,000 | |
| Spindle Power | Kw | 15 / 11 | |
| Table | Table Dimensions | mm | 1900 x 760 |
| Max. Loading Weight | Kg | 2500 | |
| ATC | No. of Tools | Nos | 40 |
| Feed rate | Rapid Traverse of X, Y, Z axis | m/min | 15x15x12 |
| CNC System | Controller | – | Fanuc 18-M |
| Machine size | Dimensions (L x W x H) (Approx.) | mm | 4334 x 3640 x 3297 |
| Machine weight (Approx.) | kg | 13000 |
| Optional Accessories Available with Machine | |
| · Spindle Gear Box
· Spindle Chiller Unit · Coolant Though Spindle
|
· BT50, 40 Tool ATC
· Weight Balancer · Level Pad |
