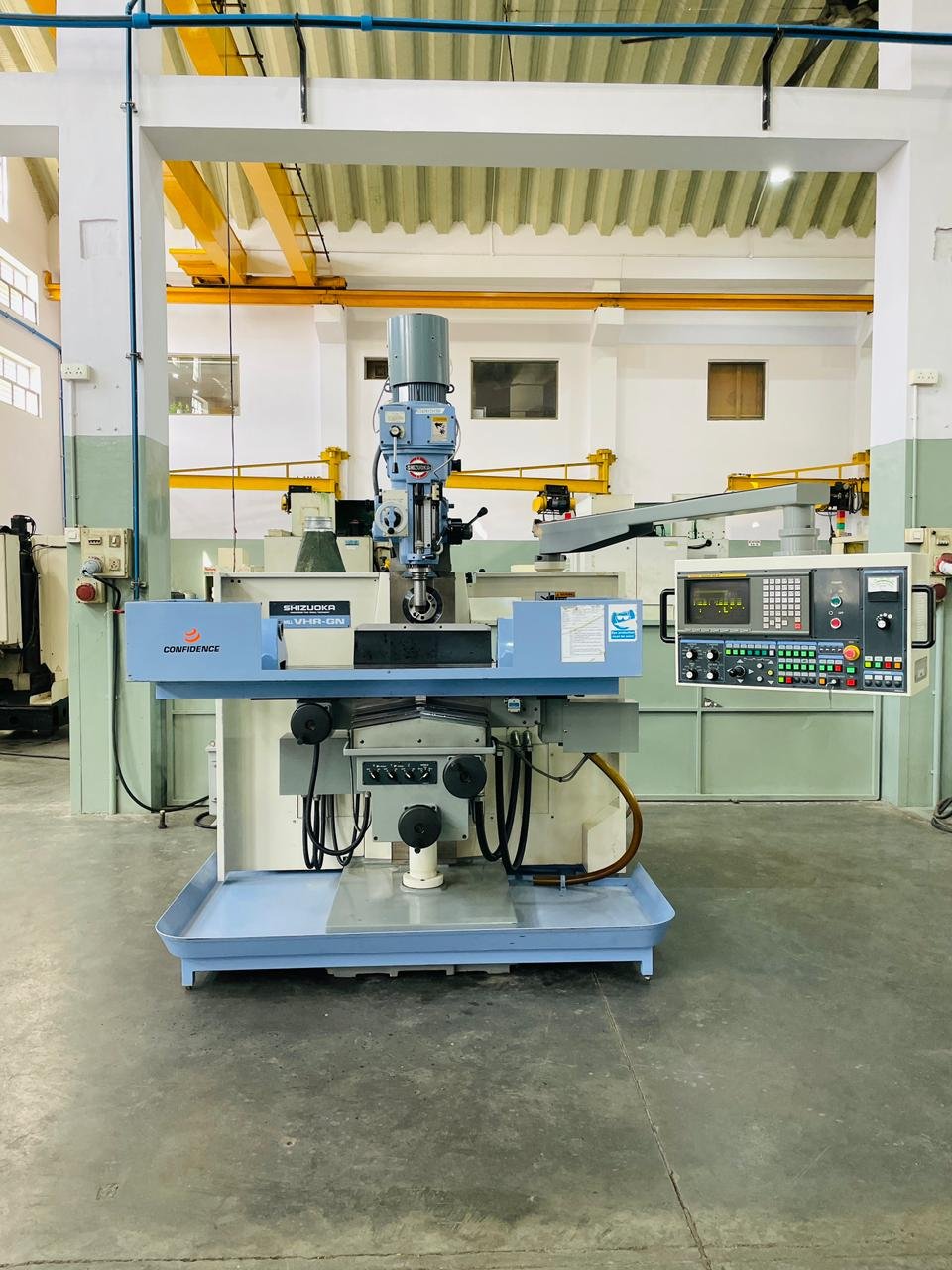

| Title | Description | Unit | VHR-GN |
| Travel | X- axis | mm | 350 |
| Y- axis | mm | 300 | |
| Z- axis | mm | 400 | |

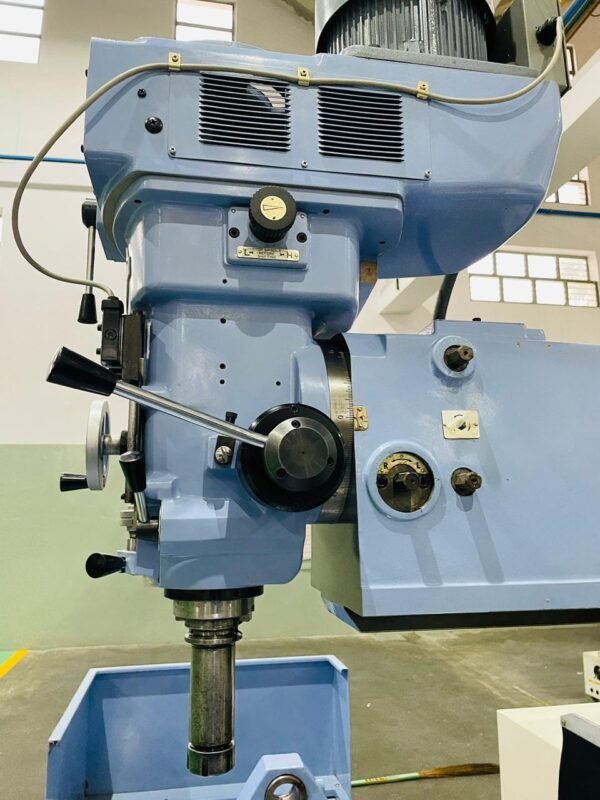

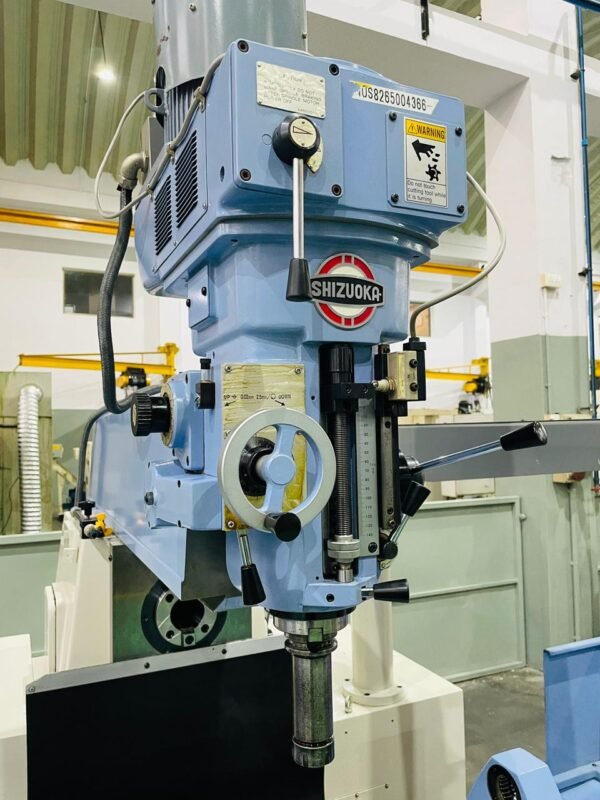

| Spindle | Spindle nose | type | BT40 |
| Spindle speed | rpm | 3600 | |

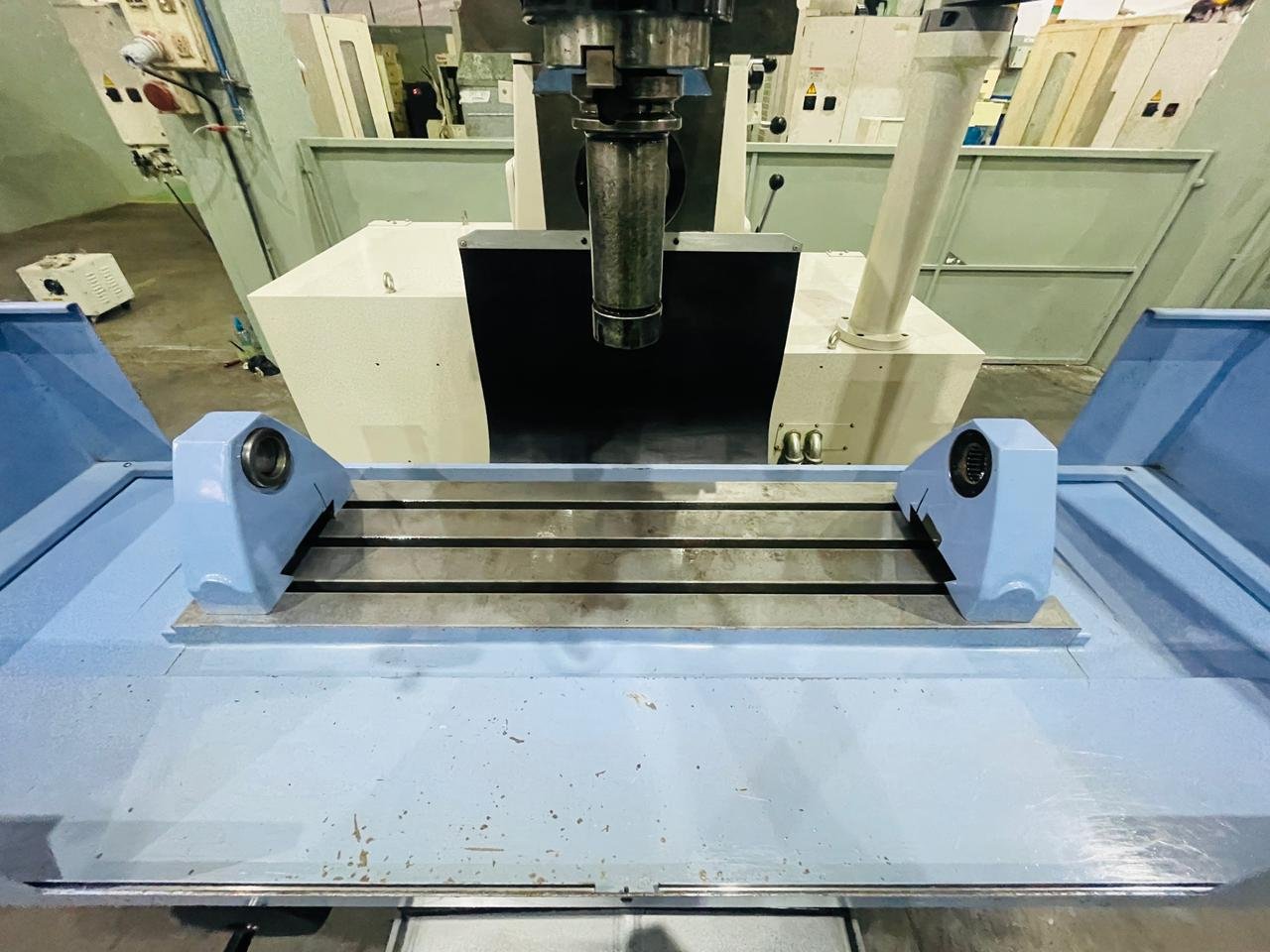

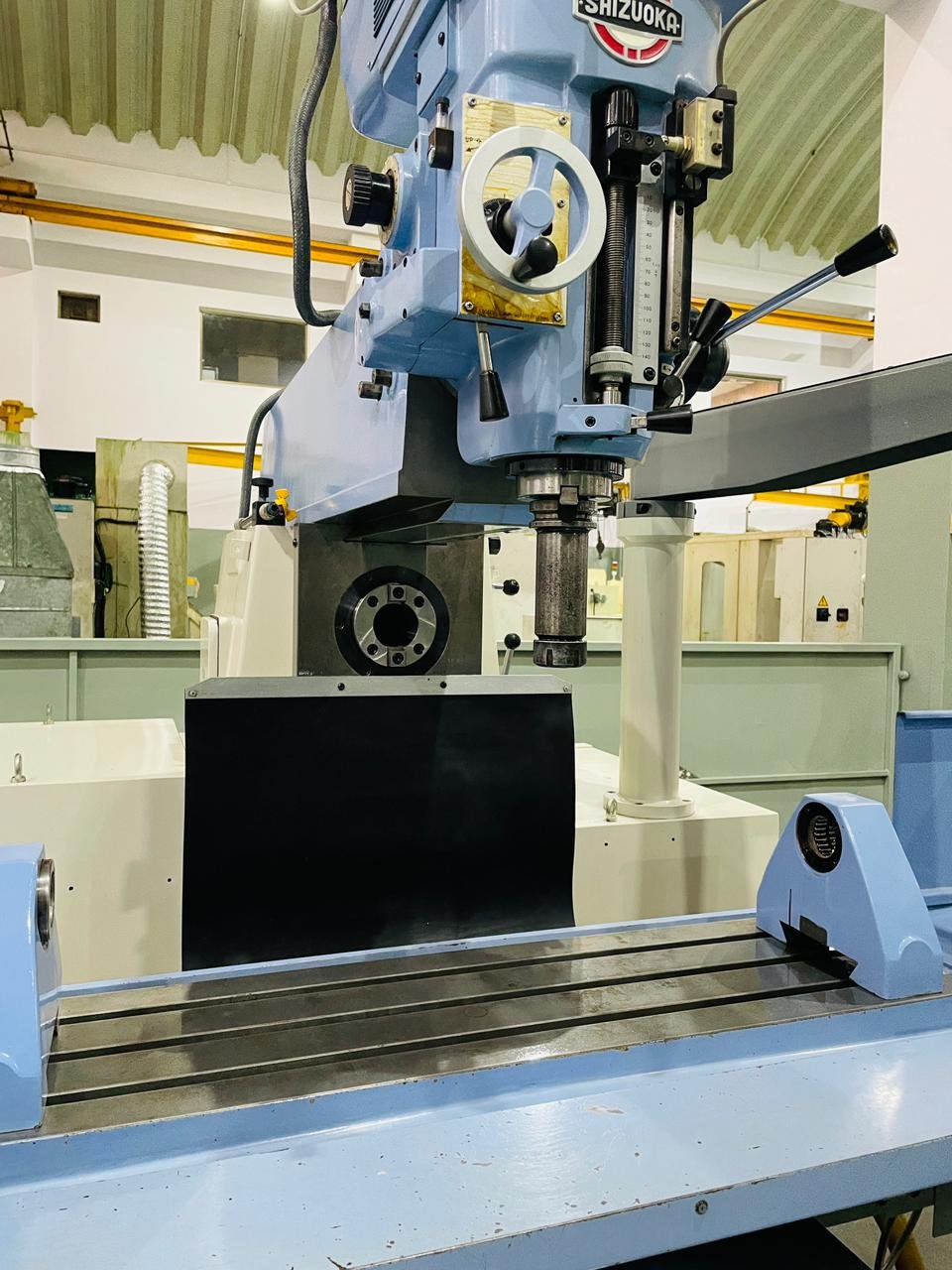

| Table | Table Dimensions | mm | 1100×280 |
| Feed rate | Rapid Traverse of X, Y, Z axis | m/min | 30 x 30 x 30 |

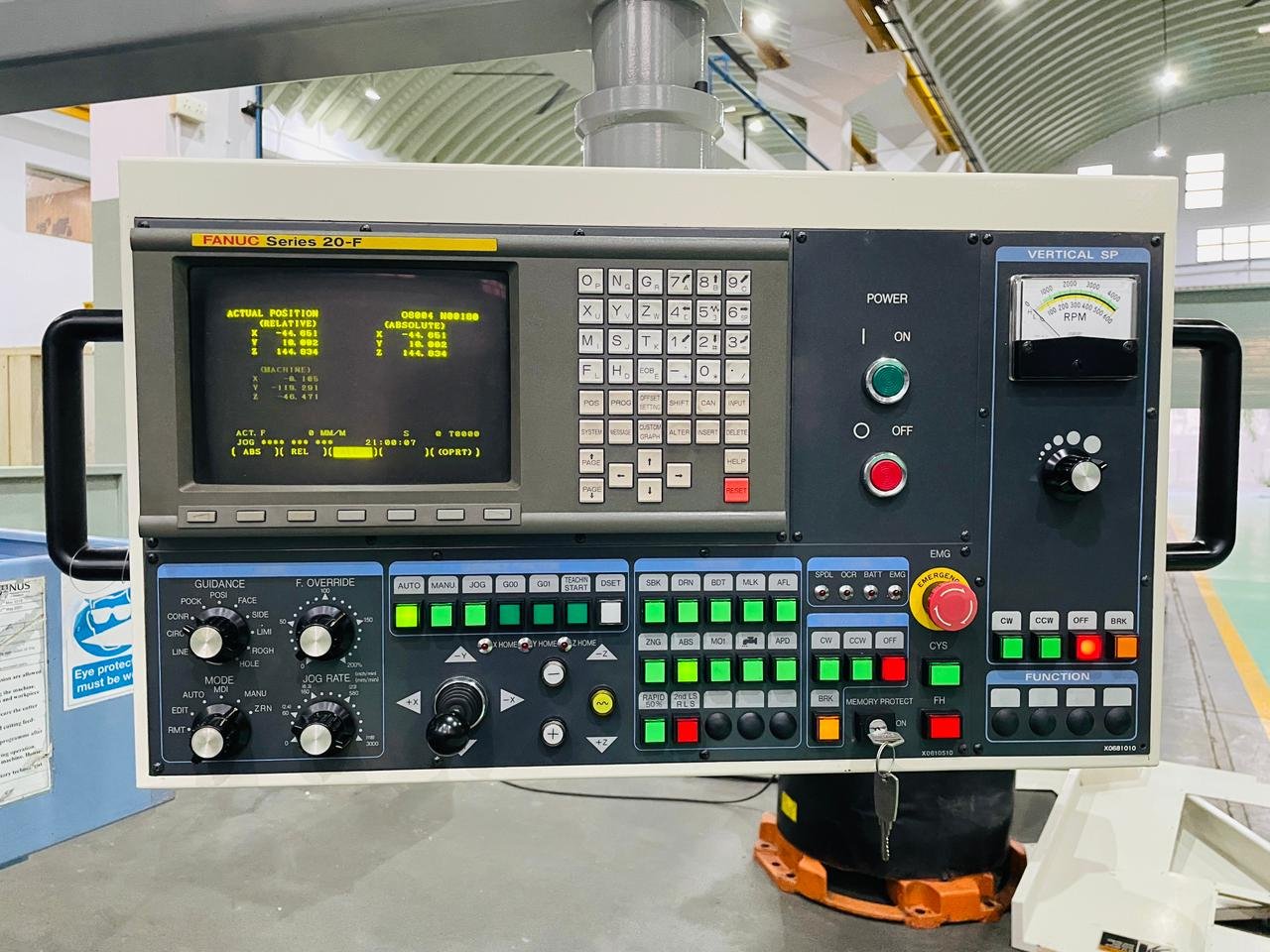

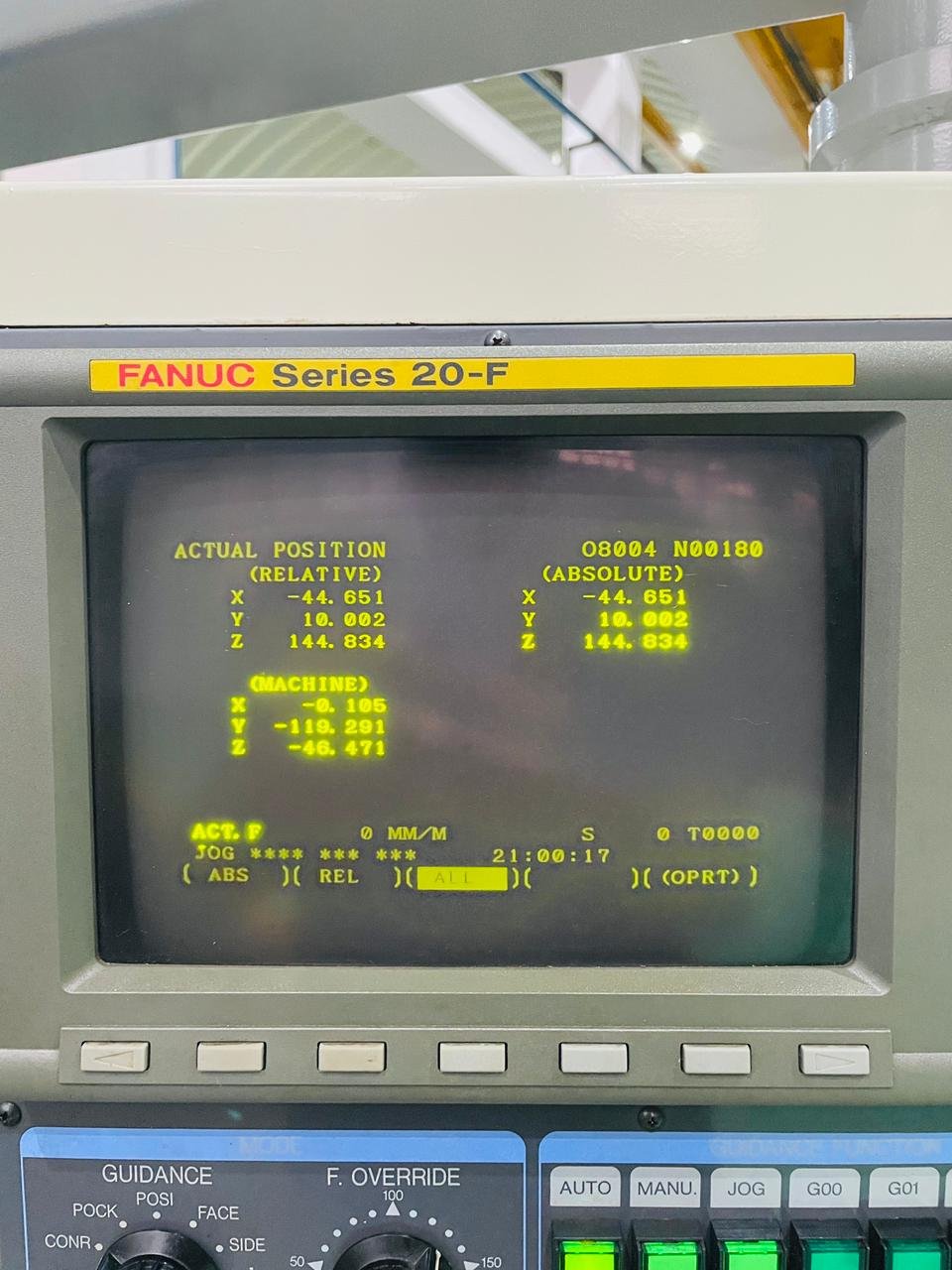

| CNC System | Controller | – | Fanuc 20-F |
| Machine size | Dimensions (L x W x H) (Approx.) | mm | 1920 x 2085 x 2400 |
| Machine weight (Approx.) | kg | 2500 |
